TRAIL series / Commercial Loudspeakers

TRAIL103

3" | 1-way | 30 WRMS | rail-mount | lamp style design

TRAIL103 is a 3" lamp style loudspeaker cabinet, featuring an installation system which is compatible with ceiling light rails, as well as surface mount, truss mount, etc. High Impedance (15W and 30W taps) and Low Impedance (4 ohm) connections included. White and back colours available.

Request a quote →Chat on Zalo

Key features

013" driver
02Mounting options (included): ceiling light rails, surface mount and truss/threaded bar adapter
03Low impedance connection: 4Ω
04High impedance connection: 15/30W selector
05Available in white (RAL 9003) and black finish (RAL 9005)
06EASE files available

SYSTEM

Effective Freq. Range
115 Hz-20 kHz (-10dB)
Coverage angle / Dispersion
180°x180° (HxV)
Power handling
15 W RMS / 60 W Peak
Sensitivity
83 dB (1W/1m)
Maximum SPL
95 dB continuous / 101 dB peak
Power options (Hi Z Multi-tap)
Lo-Z: 4Ω; Hi-Z: 15/30 W @ 100V
Recommended amplifier power
30 W RMS

TRANSDUCERS

Ways
1-way
Driver
3" woofer
Nominal impedance
4Ω

PHYSICAL

Connection type
Clamp terminals + Euroblock terminals
Installation options
Ceiling light rails, surface mount, truss mount
Mounting system
Cabinet
Rail fixing system
4 wire 3 circuit track system
Compatible rail systems
Global Track Pro or compatibles
Operating temperature
Min: -20°C ; -4°F Max: 70°C ; 158°F
Operating humidity
<85% HR
Storage temperature
Min: -20°C ; -4°F Max: 70°C ; 158°F
Storage humidity
<90% HR
Included accessories
Mounting accessories
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
96x110mm / 3.78"x4.33" (ØxD)
Weight
1.0 kg / 2.2 lb
Pieces per box
Unit
Shipping dimensions
240 x 140 x 160 mm / 9.45 x 5.51 x 6.3 in. (WxHxD)
Shipping weight
1.4 kg / 3.09 lb

Projects using TRAIL103

Fifth avenue Mango flagship store
New York, United States

Fifth avenue Mango flagship store

Retail

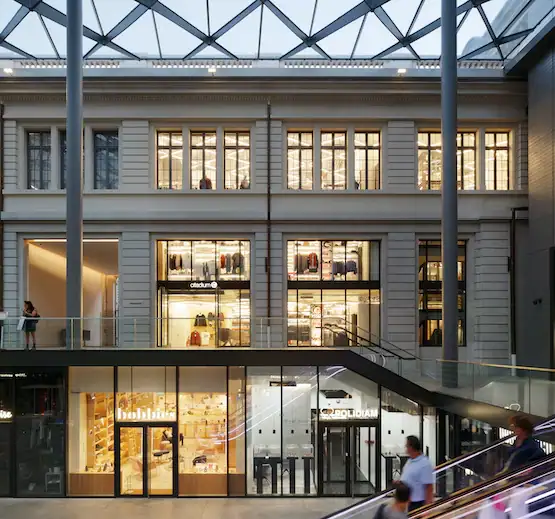

Marketplace at Grand Hôtel Dieu Mall
Lyon, France

Marketplace at Grand Hôtel Dieu Mall

Hospitality
